 Screen size |
|
 Max load |
|
 TV mount size |
|
 Tilt |
|
 Swivel |
|
 Wall to TV |
|

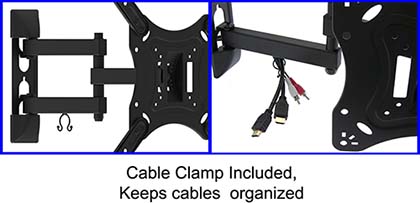

* For 23~55 inch screen, with cable clamp management
* Supported screen size is shown as a guidance. It may be larger or smaller as long as the weight is within the limit.

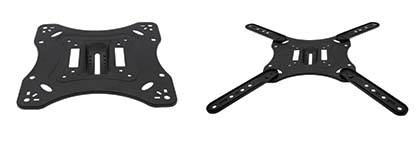

* The VESA adapters (included) allows a mounting whole pattern size of up to 400x400mm
* Tilt: -20 ~ +20 degree
* Swivel: 45 degree
* Load Capacity: 66lbs (30kg)
* TV to Wall: 3.5" ~ 7.92" (88~ 201mm)
* VESA:75x75/100x100mm/200x100mm/200x200mm/400x200mm/300x300mm/400x400mm
* Mounting hardware included
* Bracket weight: 3.76lbs
* Carton qty: 10
* 5 year warranty
** 1LBS = 0.454Kg, 1 inch = 25.4mm **
