HDMI 4X4 Matrix 4K

  • Sale
  • Regular price $152.00

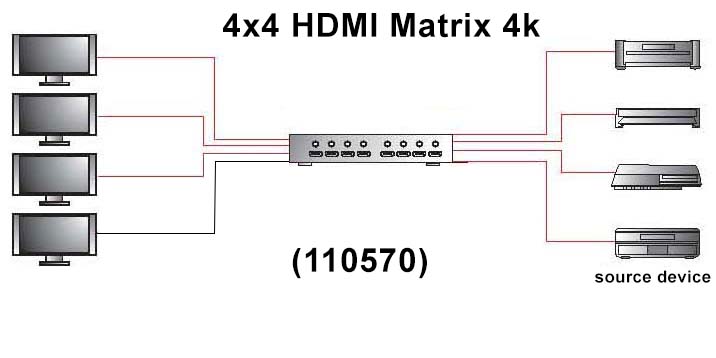

110570 is a true matrix 4 x 4 switch, up to 4 source devices and up to 4 displays can be connected. You can have the same video mirrored on all displays, or use the switch to send different video to each monitor. Input source for each display is selected by pushing the button on the HDMI matrix box, or using the remote control.


* True matrix 4 x 4, (4 input / 4 output)
* HDMI version: High-Speed with 3D support
* HDMI resolution: Up to 4K
* LED display for input /output selection
* Support video color format: deep color 36bit
* Support audio format: -DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
* Date transfer speed: 6.75Gbps
* Input Video signal: 5.0Volts P-P
* Max output cable length: 60Ft
* Power adapter : Input: AC (50HZ.60HZ) 100V-240V; Output: DC5V: (included)
* Operating Temperature range: (-15 to +55 Degree)
* Operating Humidity range: 5 to 90%RH (No Condensation)

Product content:

1 -- HDMI 4 x 4 matrix switch
1 -- Remote control
1 -- DC5V 2A power supply
